    358 4mm Anti Climb Security Fence Electric And Pvc Coated Anti Corrosion

    Ask Lasest Price
    Brand Name : HGMT
    Model Number : GF022
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, D/P, T/T
    Supply Ability : 5000meter per week
    Delivery Time : 25days
    • Product Details
    • Company Profile

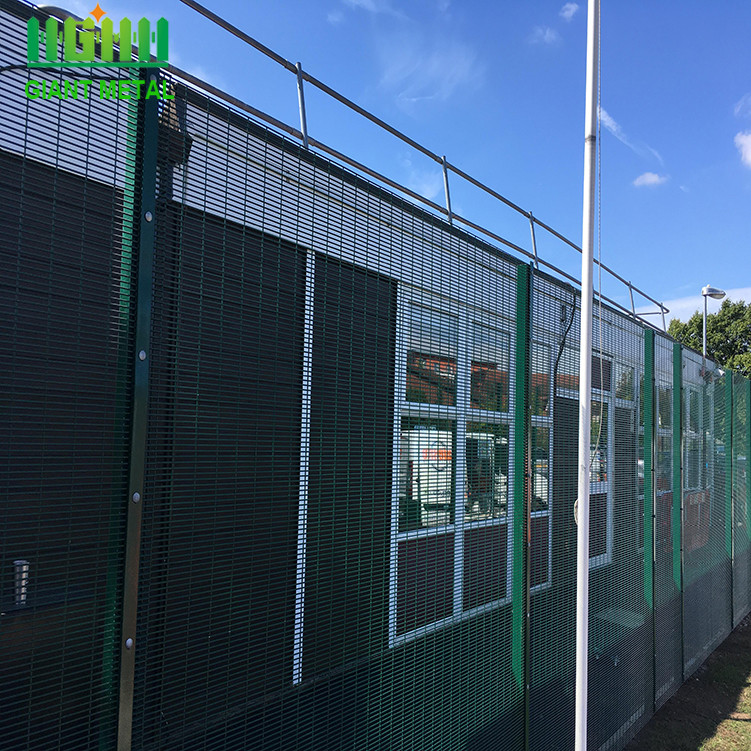

    358 4mm Anti Climb Security Fence Electric And Pvc Coated Anti Corrosion

    Electric and PVC coated anti-corrosion 358 high security fence


    358 security fence panel introduction
    The mesh size of 358 security fence is 76.2*12.7mm(center to center), the distance of horizontal wire is 12.7mm, and the distance of vertical wire is 76.2mm. 358 Security Fence has good anti-corrosion performance, anti-aging, beautiful appearance and easy installation.

    358 4mm Anti Climb Security Fence Electric And Pvc Coated Anti Corrosion


    Panel Description
    Mesh size3"(75mm)*0.5"(12.5mm) resistance welded well at each intersection
    Wire diameter8 gauge(4mm) horizontal wire and vertical wire
    Welded strengthRange 540-690N/m2

    Surface treatment

    hot dipped galvanized steel wire, then PVC powder coating (Min. 100 micron), or PVC powder painting. It provides additional protection and increases the potential life span
    InstallationOverlapped 75mm minimum at each post (shown as the below photo) for securing with slotted clamp bars and M8 diameter bolts
    Post Description
    Materialhigh grade steel for maximum strength and rigidity
    Post section60×60mm,80×60mm, 80×80mm or 120×60mm
    Post plate thickness2.5mm or 3.0mm
    inside and outside galvanized (Min. 275 g/m2), subsequently covered with a polymer powder (Min. 60 micron )
    ColorsGreen RAL 6005, or Black RAL 9005
    Post cap80×60mm and 120×60mm post with metal caps, and 80×80mm post with plastic cap
    Metal clips and clamps are hot dip galvanized then powder coating in green or black color.

    Feature:
    1. Anti-climb:Due to the high-density mesh of the 358 guardrail, it is impossible to grasp the hands and feet, which plays a very good protection against climbing.
    2. Anti-shear:the wire diameter is large, the mesh is dense, making the wire cut useless.
    3. Beautiful appearance: the mesh surface is flat, and the perspective is higher.

    358 4mm Anti Climb Security Fence Electric And Pvc Coated Anti Corrosion
